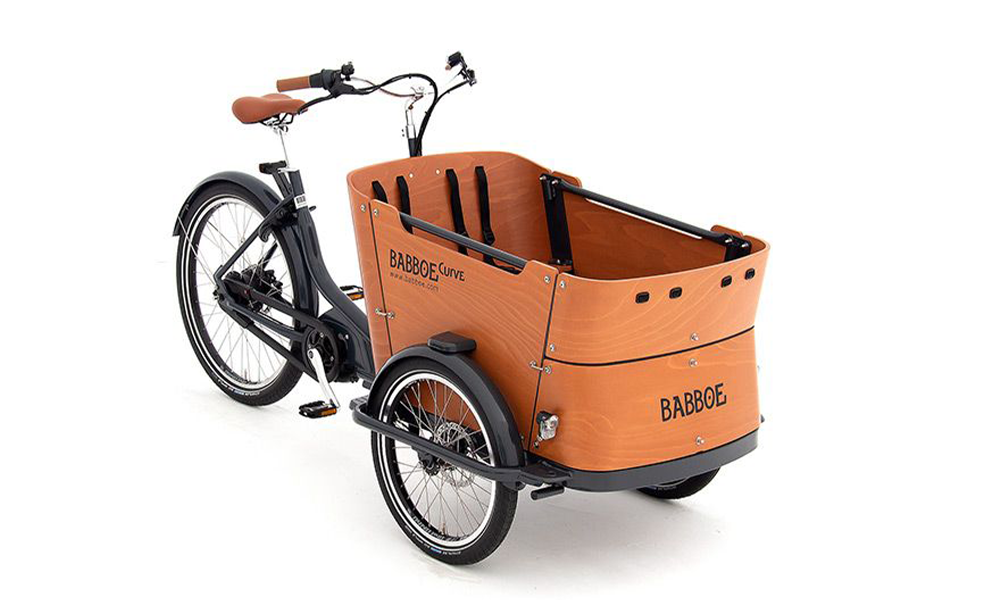

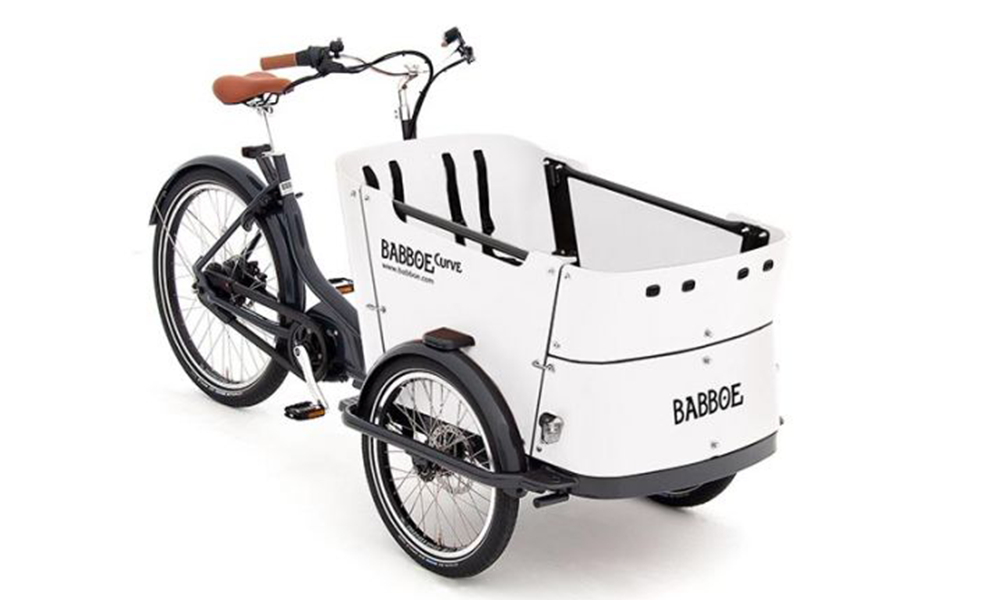

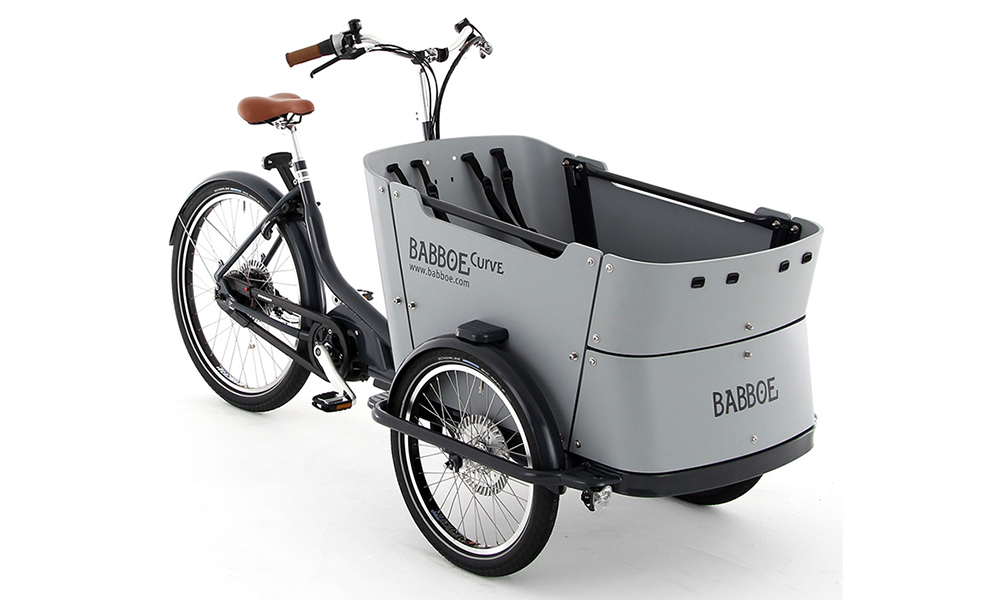

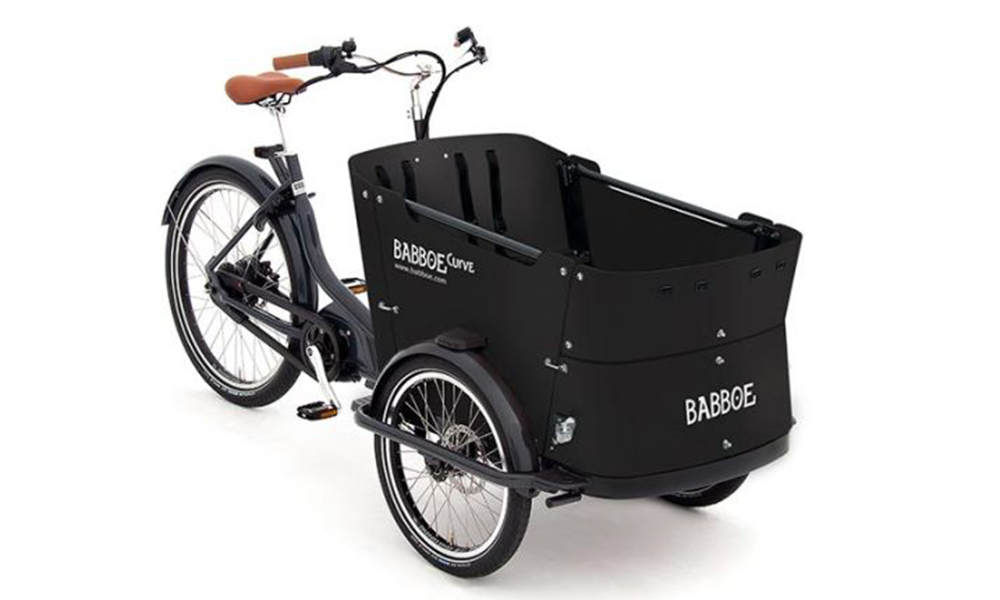

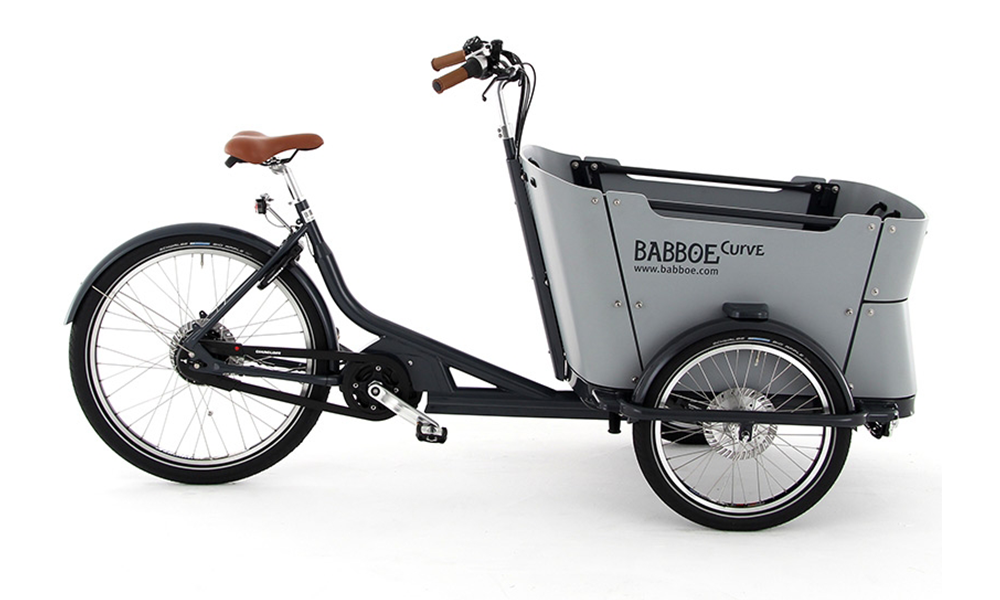

Babboe Curve Mountain

The Curve Mountain is a motorized version of the Babboe Curve, designed for environments with steep slopes (3% or higher) . Powered with the help of a powerful and sophisticated Yamaha engine. It is a central motor, with a torque sensor, and combined with an Enviolo gear system, which is very easy, comfortable and robust to use. It is the perfect gear system to combine with an electric motor.

EQUIPMENT

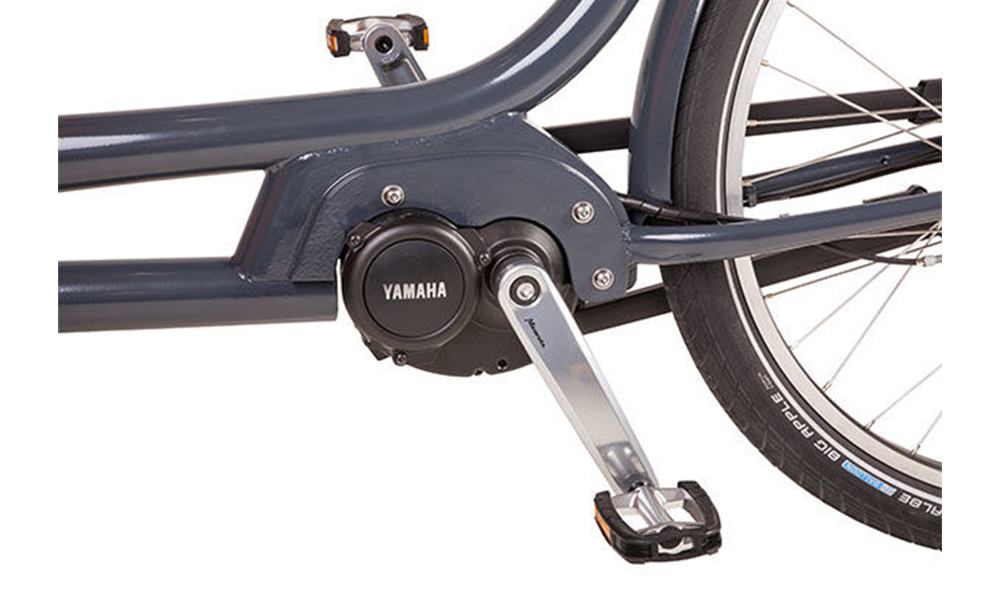

• Yamaha mid-engine with torque sensor

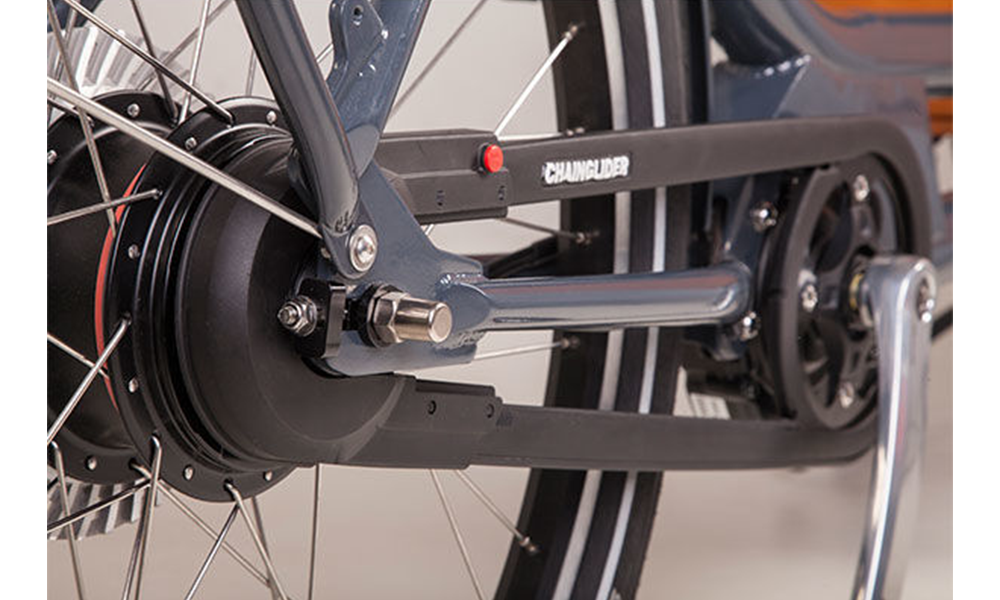

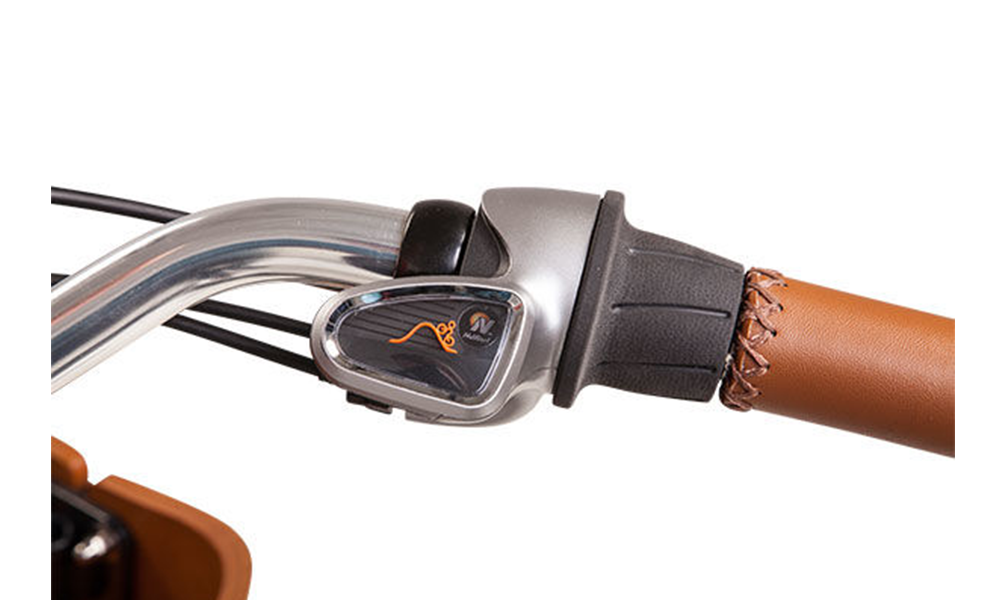

• Enviolo continuous gear system, maintenance-free
• Front and rear disc brakes

DATA SHEET

• Bicycle dimensions: Length 217 cm, width 88.4 cm, height 110 cm
• Box dimensions: length 90 cm, width 63 cm, height 55>44 cm
• Up to 4 places for small children
• wooden box
• Picture painted in anthracite gray

• ABUS Locking Padlock
• Size 50 frame.
• Extra strong spokes
• Two front LED lights and a rear light
• Box made of German beech wood, curved by pressure for greater strength, and without sharp corners. PEFC certified wood.
• Load: up to 100 Kg
• Without carrier (Optional)
• 26 x 2.125 rear wheel
• 20 x 2.125 front wheels
• 4 3-point safety harnesses.
• Anti-tip system
• Height adjustable handlebar
• Different configurations for children
• Accepted weight for driver up to 100 Kg
• Steering dampers

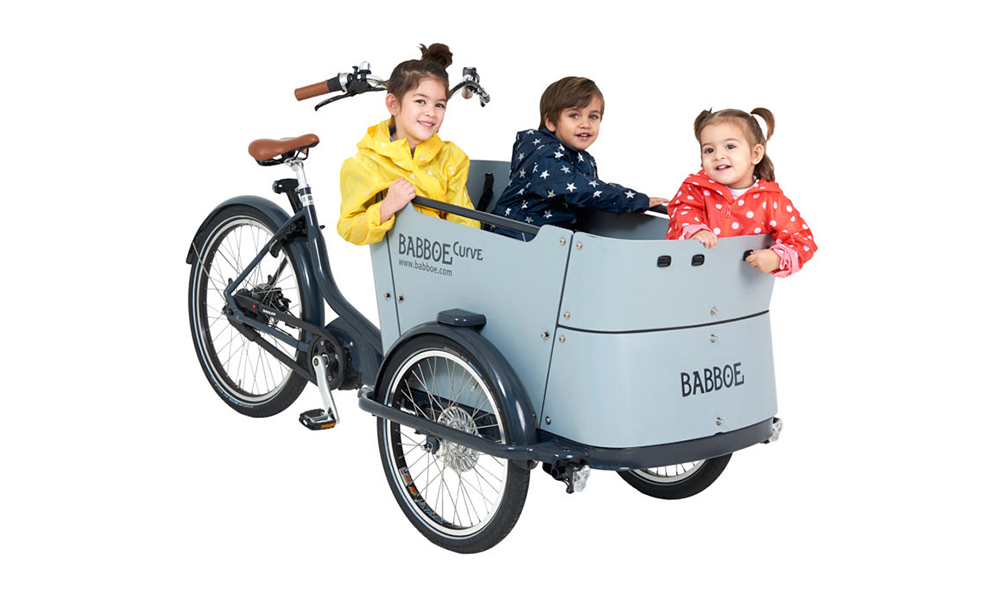

• Two benches for 4 children

ELECTRICAL SYSTEM SPECIFICATIONS

• 250W Yamaha motor, with nominal torque of 70Nm and a maximum of 80Nm
• Radius of action: typically between 40/60 km.
• 36V, 400Wh / 500Wh battery. It is housed under the seat, in the cargo compartment.
• Charging time: 4 to 6 hours for a full charge.

KEEP IN MIND:

• The indicated price DOES NOT INCLUDE SHIPPING COSTS .


• The photographs are for guidance only, to show different configuration options and components, so they are not contractual in nature.


• The price indicated (if indicated) corresponds to the basic model, without extras or accessories, based on the minimum standard configuration (i.e. the most economical), and may not correspond to any or all of the photographs.


• Due to the continuous technological development by manufacturers, we cannot guarantee that the technical sheet and list of components are completely updated. For current options and prices, contact us.
